鋁小沉頭圓柱RH-RB-AL
- 產(chǎn)品描述
-

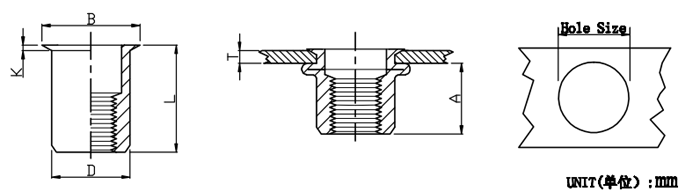

Thread P/N T(GRIP RANGE) A Hole Size D B K L Min Max Ref +0.1 +0.07 ±0.1(*±0.15) ±0.25(*±0.3) 0 -0.1 M4*0.7 RH-RB/AL-0420 0.5-2.0 6.0 6.0 5.9 7.0 +0.2 0.5 10.5 -0.1 M5*0.8 RH-RB/AL-0520 0.5-2.0 7.5 7.0 6.9 8.0 +0.25 0.5 11.5 -0.1 M6*1.0 RH-RB/AL-0625 0.5-2.5 9.2 9.0 8.9 10.0 +0.25 0.6* 14.0* -0.1 M8*1.25 RH-RB/AL-0825 0.5-2.5 10.2 11.0 10.9 12.0 +0.25 0.65* 15.5* -0.1 M10*1.5 RH-RB/AL-1030 1.0-3.0 11.5 13.0 12.9 14.1 +0.3 0.7* 17.7* -0.1
