小平頭(菊花）豎條紋（美標）SFH-KB-US
- 產(chǎn)品描述
-

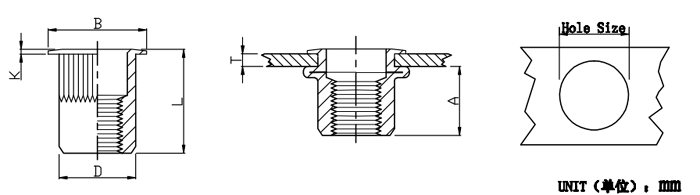

ISO UNIT:mm
Thread P/N T(GRIP RANGE) A Hole Size D B K L Min Max Ref +0.1 ±0.05 ±0.25(*±0.3) ±0.1(*±0.15) ±0.25(*±0.3) 0 M4*0.7 SFH-KB-US-0420 0.5-2.0 7.5 6.73 6.6 7.9 0.5 11.3 M5*0.8 SFH-KB-US-0530 0.5-3.0 8.0 7.52 7.4 8.6 0.5 12.5 M6*1.0 SFH-KB-US-0635 1.0-3.5 9.5 9.91 9.8 11.55 0.6 15.0* M8*1.25 SFH-KB-US-0840 1.0-4.0 12.0 13.46 13.3 15.2* 0.65* 18.0* M10*1.5 SFH-KB-US-1040 1.0-4.0 12.0 13.46 13.3 15.2* 0.65* 18.0*
UNC UNIT:Inch
Thread P/N T(GRIP RANGE) A Hole Size D B K L Min Max Ref +0.004 ±0.002 ±0.01(*±0.012) ±0.004(*±0.006) ±0.01(*±0.012) 0 8-32 UNC SFH-KB-US-083208 .02-.08 .295 .265 .260 .311 .020 .445 10-24 UNC SFH-KB-US-102412 .02-.12 .315 .296 .291 .339 .020 .492 1/4-20 UNC SFH-KB-US-142014 .04-.14 .374 .390 .386 .457 .024 .590 5/16-18 UNC SFH-KB-US-5161816 .04-.16 .472 .530 .524 .598* .026* .709* 3/8-16 UNC SFH-KB-US-381616 .04-.16 .472 .530 .524 .598* .026* .709*
