小沉頭菊花（英標）RH-RB-UK
- 產(chǎn)品描述
-

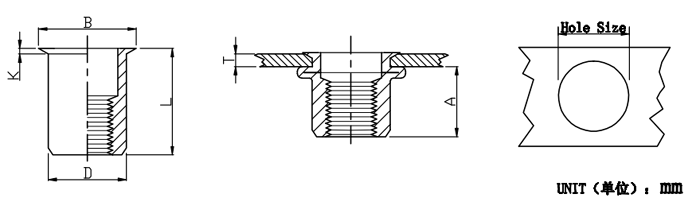

ISO UNIT:mm
Thread P/N T(GRIP RANGE) A Hole Size D B K L Min Max Ref +0.1 ±0.05(* +0.06 ) 0 -0.1 M3*0.5 RH-RB-UK-0315 0.5-1.5 5.5 4.8 4.65 5.4 +0.3 0.4±0.1 9.0±0.2 -0.1 M4*0.7 RH-RB-UK-0420 0.5-2.0 6.5 6.4 6.25 7.0 +0.3 0.5±0.1 10.5±0.25 -0.1 M5*0.8 RH-RB-UK-0525 0.5-2.5 7.5 7.2 7.05 7.8 +0.3 0.5±0.1 12.0±0.25 -0.1 M6*1.0 RH-RB-UK-0630 1.0-3.0 9.2 9.6 9.45 10.3 +0.3 0.6±0.15 15.0±0.3 -0.1 M8*1.25 RH-RB-UK-0835 1.0-3.5 10.5 10.6 10.45 11.3 +0.35 0.6±0.15 16.0±0.3 -0.1 M10*1.5 RH-RB-UK-1040 1.0-4.0 12.8 12.8 12.65* 13.8 +0.35 0.65±0.15 20.0±0.3 -0.1
UNC UNIT:Inch
Thread P/N T(GRIP RANGE) A Hole Size D B K L Min Max Ref +0.004 ±0.002(* +0.002 ) +0.012 (* +0.014 ) ±0.004(*±0.006) ±0.01(*±0.012) 0 -0.004 -0.004 -0.004 6-32 UNC RH-RB-UK-063206 .02-.06 .216 .189 .183 .212 .016 .354 8-32 UNC RH-RB-UK-083208 .02-.08 .256 .252 .246 .275 .019 .413 10-24 UNC RH-RB-UK-102410 .02-.10 .295 .283 .277 .307 .019 .472 1/4-20 UNC RH-RB-UK-142012 .04-.12 .362 .378 .372 .406 .024* .591* 5/16-18 UNC RH-RB-UK-5161814 .04-.14 .413 .417 .411 .445* .024* .630* 3/8-16 UNC RH-RB-UK-381616 .04-.16 .504 .504 .498* .543* .026* .787*
