小沉頭豎條紋RH-KB
- 產(chǎn)品描述
-

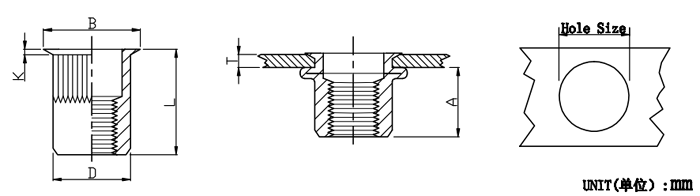

Thread P/N T(GRIP RANGE) A Hole Size D B K L Min Max Ref +0.1 +0.07 0 -0.1 M3*0.5 RH-KB-0320 0.5-2.0 6.2 5.0 4.9 6.0 +0.2 0.5±0.1 9.0±0.2 -0.1 M4*0.7 RH-KB-0420 0.5-2.0 7.0 6.0 5.9 7.0 +0.2 0.5±0.1 11.2±0.25 -0.1 M4*0.7 RH-KB-0440 2.0-4.0 7.0 6.0 5.9 7.0 +0.2 0.5±0.1 13.0±0.25 -0.1 M5*0.8 RH-KB-0520 0.5-2.0 7.0 7.0 6.9 8.0 +0.25 0.5±0.1 11.5±0.25 -0.1 M5*0.8 RH-KB-0540 2.0-4.0 7.0 7.0 6.9 8.0 +0.25 0.5±0.1 13.0±0.25 -0.1 M6*0.8 RH-KB-0625 0.5-2.5 8.5 9.0 8.9 10.0 +0.25 0.6±0.15 14.0±0.25 -0.1 M6*0.8 RH-KB-0650 2.5-5.0 8.5 9.0 8.9 10.0 +0.25 0.6±0.15 16.0±0.25 -0.1 M8*1.25 RH-KB-0830 0.5-3.0 10.0 11.0 10.9 12.0 +0.25 0.65±0.15 16.5±0.3 -0.1 M8*1.25 RH-KB-0850 3.0-5.0 10.0 11.0 10.9 12.0 +0.25 0.65±0.15 18.5±0.3 -0.1 M10*1.5 RH-KB-1035 1.0-3.5 12.5 13.0 12.9 14.0 +0.35 0.7±0.15 19.5±0.3 -0.1 M10*1.5 RH-KB-1060 3.5-6.0 12.5 13.0 12.9 14.0 +0.35 0.7±0.15 22.0±0.3 -0.1 M10*1.5 RH-KB-103512H 1.0-3.5 12.5 12.0 11.9 13.0 +0.25 0.7±0.15 19.5±0.3 -0.1 M12*1.75 RH-KB-1240 1.0-4.0 16.2 16.0 15.9 17.6 ±0.25 0.75±0.15 24.2±0.35
