平頭(菊花)豎條紋(美標)FH-KB-US
- 產品描述
-

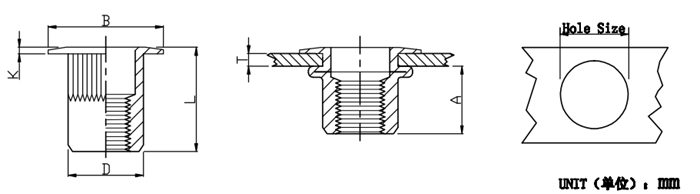

ISO UNIT:mm
Thread P/N T(GRIP RANGE) A Hole Size D B K L Min Max Ref +0.1 ±0.05(* +0.05 ) 0 (*±0.2) 0 -0.1 -0.15 M4*0.7 FH-KB-US-0420 0.5-2.0 7.5 6.73 6.6 9.5±0.25 0.6 11.5±0.2 M5*0.8 FH-KB-US-0530 0.5-3.0 8.0 7.52 7.4 10.0±0.25 0.75 13.0±0.25 M6*1.0 FH-KB-US-0635 1.0-3.5 9.5 9.91 9.8 12.7±0.3 0.9 15.0±0.3 M8*1.25 FH-KB-US-0840 1.0-4.0 12.0 13.46 13.3 17.4±0.3 1.0 18.5±0.3 M10*1.5 FH-KB-US-1040 1.0-4.0 12.0 13.46 13.3 17.4±0.3 1.0 18.5±0.3 M12*1.75 FH-KB-US-1255 2.0-5.5 20.5 17.4 17.3* 22.0±0.35 2.0* 29.0±0.35
UNC UNIT:Inch
Thread P/N T(GRIP RANGE) A Hole Size D B K L Min Max Ref +0.004 ±0.002(* +0.0002 ) 0 (*±0.08) 0 -0.004 -0.006 8-32 UNC FH-KB-US-0420 .02-.08 .295 .265 .260 .374 .024 .453 10-24 UNC FH-KB-US-0530 .02-.12 .315 .296 .291 .394 .030 .512 1/4-20 UNC FH-KB-US-0635 .04-.14 .374 .390 .386 .500 .036 .590 5/16-18 UNC FH-KB-US-0840 .04-.16 .472 .530 .524 .685 .039 .728 3/8-16 UNC FH-KB-US-1040 .04-.16 .472 .530 .524 .685 .039 .728 1/2-13 UNC FH-KB-US-1255 .08-.22 .807 .685 .681* .866 .079* 1.14*
