平頭內外六角（英標）FH-IHB-UK
- 產(chǎn)品描述
-

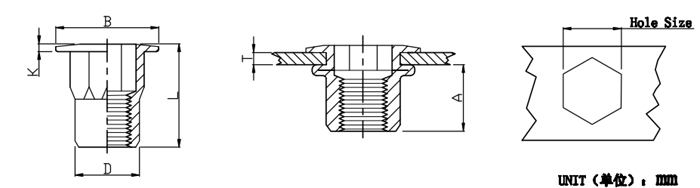

ISO UNIT:mm
Thread P/N T(GRIP RANGE) A Hole Size D B K L Min Max Ref +0.1 ±0.05(*±0.08) ±0.25(*±0.3) ±0.1(*±0.15) ±0.25(*±0.3) 0 M4*0.7 FH-IHB-UK-0420
0.5-2.0 6.5 6.4 6.25 9.5 0.6 10.5 M5*0.8 FH-IHB-UK-0525
0.5-2.5 7.5 7.2 7.05 10.0 0.8 12.0 M6*1.0 FH-IHB-UK-0630
1.0-3.0 9.2 9.6 9.4* 12.95* 1.0* 15.5* M8*1.25 FH-IHB-UK-0835
1.0-3.5 10.5 10.6 10.45* 16.5* 1.15* 18.5*
UNC UNIT:Inch
Thread P/N T(GRIP RANGE) A Hole Size D B K L Min Max Ref +0.004 ±0.002(*±0.003) ±0.01(*±0.012) ±0.004(*±0.006) ±0.01(*±0.012) 0 8-32 UNC FH-IHB-UK-083208 .02-.08 .256 .252 .246 .374 .024 .413 10-24 UNC FH-IHB-UK-102410 .02-.10 .295 .283 .278 .394 .031 .472 1/4-20 UNC FH-IHB-UK-142012 .04-.12 .362 .378 .370 .512 .039 .610 5/16-18 UNC FH-IHB-UK-5161814 .04-.14 .413 .417 .411 .650 .039 .728
